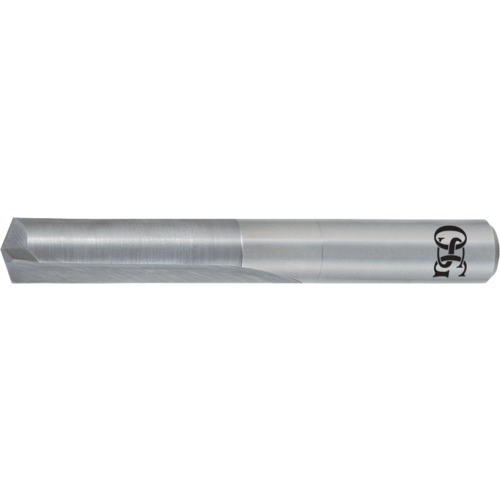

23/64″ Dia. × 23/64″ Shank × 1-3/4″ Flute Length × 3-1/16″ OAL, Bright, Solid Carbide Drill
SC Drill; 23/64″ Dia. × 23/64″ Shank Dia. × 3-1/16″ OAL × 1-3/4″ LCF ; 140 Degrees ; Jobber ; Straight Flute ; Uncoated ; Series 200
| Drill Bit Size / Cutting Diameter (DC) | 23/64″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 23/64″ | Tool Type | Jobber Drill |
| Decimal Equivalent | 0.3594″ | Flute Type | Straight |
| Length Group | Jobber | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | 200 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 1-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 23/64″ | Length Chip Flute (LCF) | 1-3/4″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3-1/16″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 1-3/4″ | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
3.35000
Package Width
.60000
Package Height
.50000
Package Weight
0.1450
