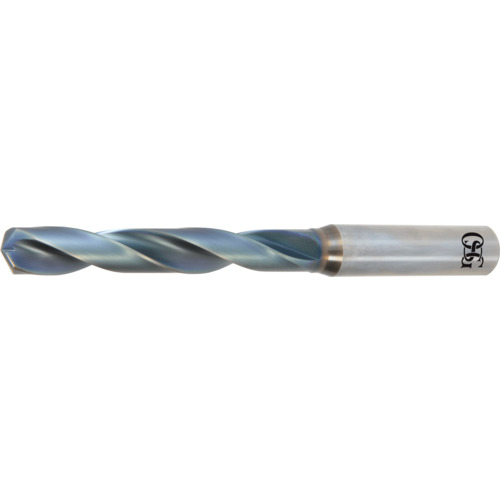

Q Dia. x 3/16″ Shank × 61 mm Flute Length × 103 mm OAL, 5xD, TiAlN, 2xD Flute, Solid Carbide Drill
SC Drill; Q Dia. x 3/16″ Shank Dia. × 103 mm OAL × 61 mm LCF ; 140 Degrees ; 5xD ; Spiral Flute ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | Q | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | Q | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Letter |
| Coating | EgiAs | Series/List # | HP245 |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 103 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 61 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
4.05000
Package Width
.65000
Package Height
.50000
Package Weight
0.1950
