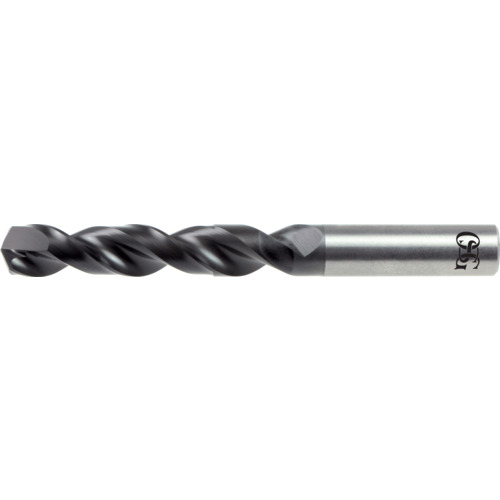

5/16″ Dia. × 7.1 mm Shank × 1.9″ Flute Length × 4″ OAL, Diamond, 2xD Flute, Solid Carbide Drill
SC Drill; 5/16″ Dia. × 7.1 mm Shank Dia. × 4″ OAL × 1.9″ LCF ; 140 Degrees ; Jobber ; CVDDIA ; Series 7532
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Shape | Jobber Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3125″ | Tool Type | Jobber Drill |
| Length Group | Jobber | Measurement Type | Inch |
| Coating | CVDDIA | Series/List # | 7532 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 1.9″ |
| Connection Diameter Machine Side (DCONMS) | 7.1 mm | Length Chip Flute (LCF) | 1.9″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 4″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 1.9″ | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.40000
Package Width
.80000
Package Height
.65000
Package Weight
0.1350
