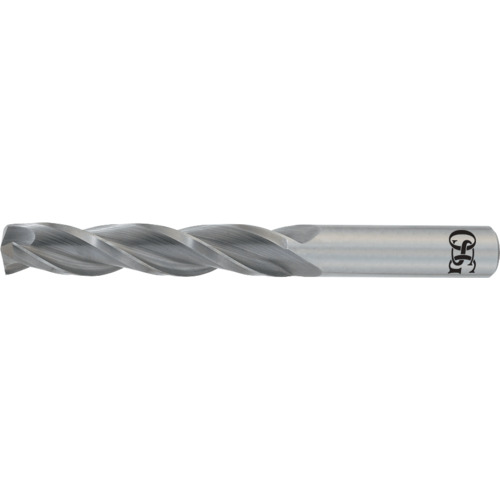

9/64|#28 Dia. × 4.1 mm Shank × 1-3/8″ Flute Length × 2-1/2″ OAL, Bright, 3xD Flute, Solid Carbide Drill
SC Drill; 9/64″ | #28 Dia. × 4.1 mm Shank Dia. × 2-1/2″ OAL × 1-3/8″ LCF ; 150 Degrees ; 3xD ; Uncoated ; Series 233
| Drill Bit Size / Cutting Diameter (DC) | 9/64″ | #28 | Functional Length (LF) | 1-3/8″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/64″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1406″ | Tool Type | Stub Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #28 | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | 233 |
| Coating | Uncoated | Usable Length (LU) | 1-3/8″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 1-3/8″ |
| Connection Diameter Machine Side (DCONMS) | 4.1 mm | Overall Length (OAL) | 2-1/2″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 3 |
| Point Angle (SIG) | 150 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.10000
Package Width
.45000
Package Height
.30000
Package Weight
0.0900
