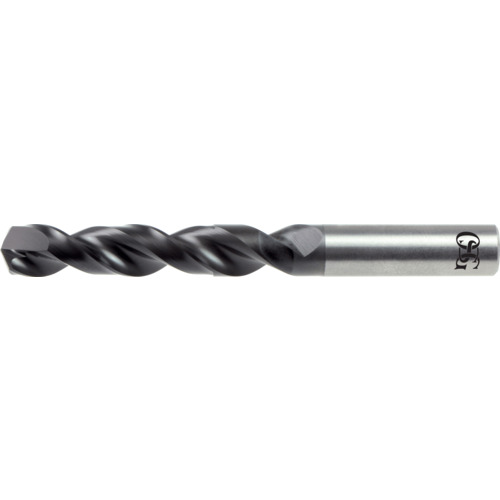

9.55 mm Dia. × 14.5 mm Shank × 2.3″ Flute Length × 6″ OAL, Diamond, 2xD Flute, Solid Carbide Drill
SC Drill; 9.55 mm Dia. × 14.5 mm Shank Dia. × 6″ OAL × 2.3″ LCF ; 140 Degrees ; Jobber ; CVDDIA ; Series 7532
| Drill Bit Size / Cutting Diameter (DC) | 9.55 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.55 mm | Tool Type | Jobber Drill |
| Length Group | Jobber | Measurement Type | Metric |
| Coating | CVDDIA | Series/List # | 7532 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 2.3″ |
| Connection Diameter Machine Side (DCONMS) | 14.5 mm | Length Chip Flute (LCF) | 2.3″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 6″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 2.3″ | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
6.20000
Package Width
1.00000
Package Height
.95000
Package Weight
0.3200
