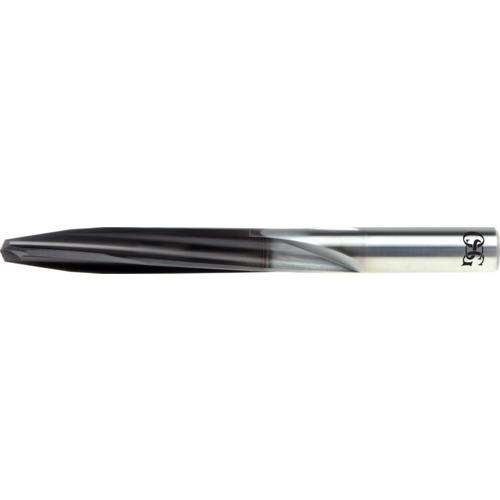

11.14 mm Dia. x #31 Shank × 2.6″ Flute Length × 4″ OAL, Diamond, 2xD Flute, Solid Carbide Drill
SC Drill; 11.14 mm Dia. x #31 Shank Dia. × 4″ OAL × 2.6″ LCF ; 130 Degrees ; Taper ; CVDDIA ; Series 7520
| Drill Bit Size / Cutting Diameter (DC) | 11.14 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.14 mm | Tool Type | Jobber Drill |
| Length Group | Taper | Measurement Type | Metric |
| Coating | CVDDIA | Series/List # | 7520 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 2.6″ |
| Connection Diameter Machine Side (DCONMS) | #31 | Length Chip Flute (LCF) | 2.6″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 4″ |
| Point Angle (SIG) | 130 Degrees | Flute Count (NOF) | 4 |
| Functional Length (LF) | 2.6″ | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
Product Features
| Country of Origin | USA |
