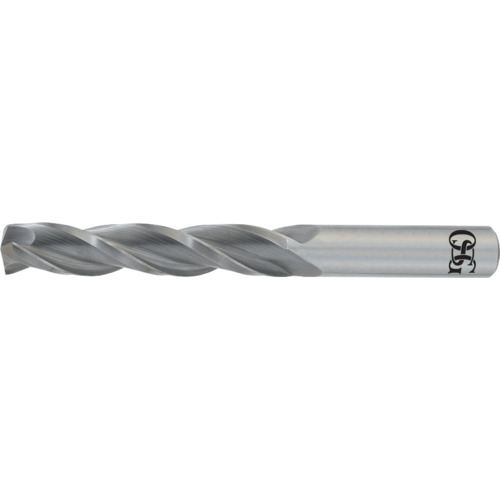

6 mm Dia. × 6 mm Shank × 51 mm Flute Length × 83 mm OAL, Bright, 3xD Flute, Solid Carbide Drill
SC Drill; 6 mm Dia. × 6 mm Shank Dia. × 83 mm OAL × 51 mm LCF ; 150 Degrees ; 3xD ; Uncoated ; Series 233
| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Tool Type | Stub Drill |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | Uncoated | Series/List # | 233 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 51 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 51 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 83 mm |
| Point Angle (SIG) | 150 Degrees | Flute Count (NOF) | 3 |
| Functional Length (LF) | 51 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.10000
Package Width
.45000
Package Height
.35000
Package Weight
0.1250
