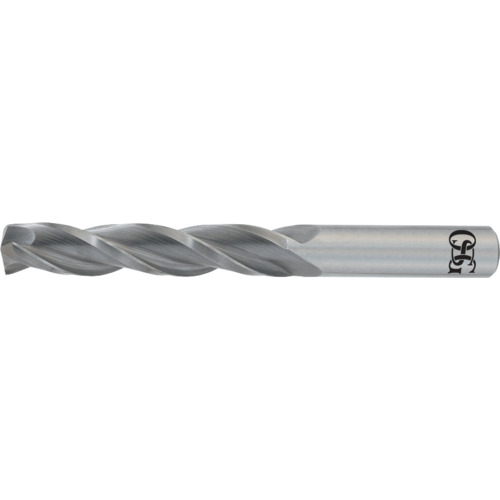

5/16″ Dia. × 5/16″ Shank × 2-3/8″ Flute Length × 3-3/4″ OAL, Bright, 3xD Flute, Solid Carbide Drill
SC Drill; 5/16″ Dia. × 5/16″ Shank Dia. × 3-3/4″ OAL × 2-3/8″ LCF ; 150 Degrees ; 3xD ; Uncoated ; Series 233
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.3125″ | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | 233 |
| Coating | Uncoated | Usable Length (LU) | 2-3/8″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 2-3/8″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Overall Length (OAL) | 3-3/4″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 3 |
| Point Angle (SIG) | 150 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 2-3/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.15000
Package Width
.60000
Package Height
.50000
Package Weight
0.1750
