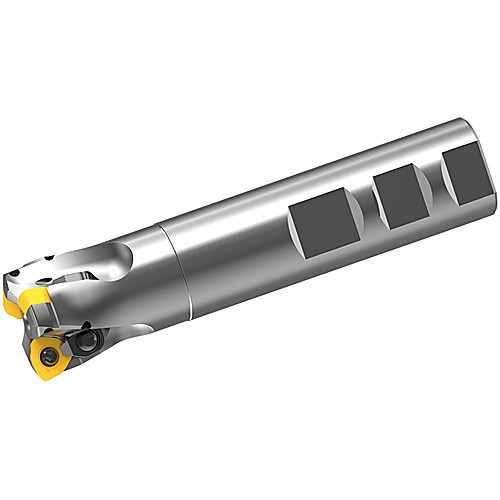

AJXU12R243WA20S INDEXABLE ENDMILL
Indexable End Mill; 1.04″ Dia. × 0.047″ LOC × 1-1/4″ Shank Dia. ; 3 FL ; Series AJX_INCH
| Cutting Diameter (DC/DCX) | 1.04″ | Functional Length (LF) | 6″ |
| Cutting Diameter (DC) | 1.04″ | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.047″ | Series/List # | AJX_INCH |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Head Length (LH) | 2″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.4000
