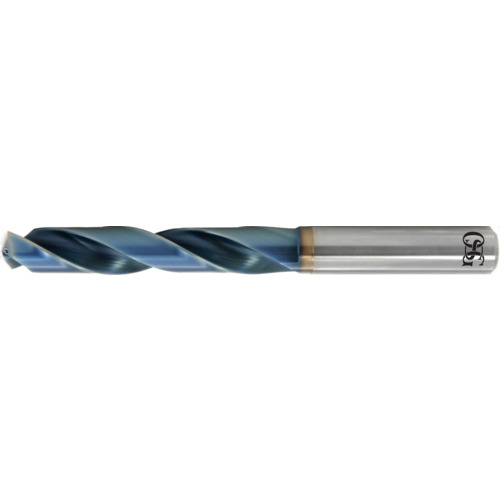

9.7 mm Dia. × 1/16″ Shank × 61 mm Flute Length × 103 mm OAL, 5xD, TiAlN, 2xD Flute, Coolant Thru, H6 Solid Carbide Drill
SC Drill; 9.7 mm Dia. × 1/16″ Shank Dia. × 103 mm OAL × 61 mm LCF ; 140 Degrees ; 5xD ; EgiAs ; Series HP255
| Drill Bit Size / Cutting Diameter (DC) | 9.7 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | HP255 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 1/16″ | Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 103 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 61 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
4.05000
Package Width
.65000
Package Height
.55000
Package Weight
0.19
