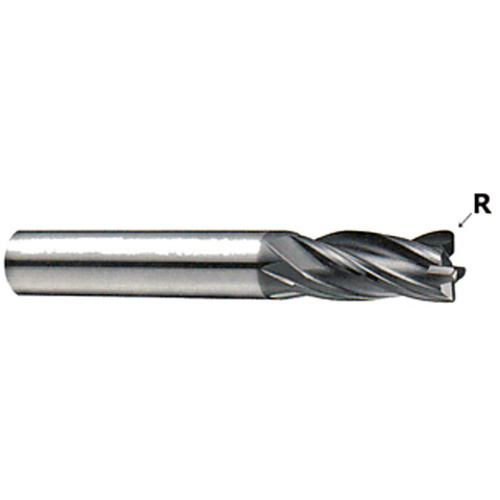

Corner Radius End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EMD49
| Cutting Diameter (DC) | 1″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 0.035″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | High Performance |
| Overall Length (OAL) | 4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | EMD49 |
| Flute Helix Angle (FHA) | Multiple | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.9055
Package Width
1.378
Package Height
1.378
Package Weight
1.444275
