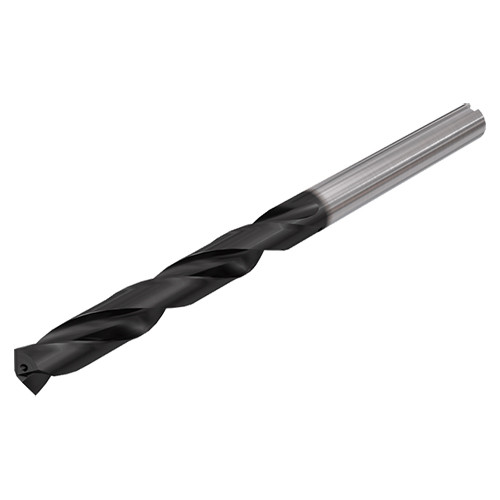

SCD 060-035-060 ACP5N IC908

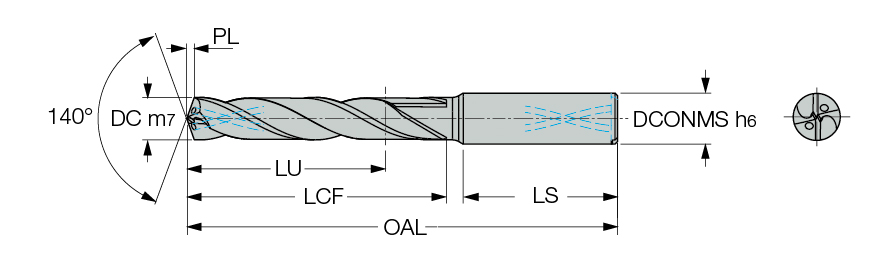

SC Drill; 6 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 45 mm LCF ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2362″ | Grade | IC908 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 35 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 45 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 82 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.9 mm | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 36 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Solid Carbide | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | DIN 6537 solid carbide drills with coolant holes, drilling depth 5xD. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.061
