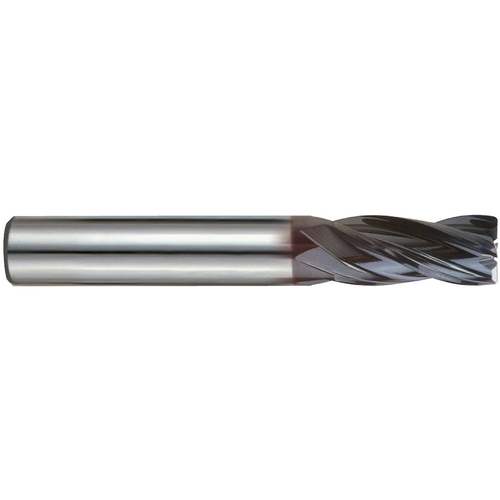

Corner Radius End Mill; 5 mm Dia. × 13 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series EMD40
| Cutting Diameter (DC) | 5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 0.3 mm |
| Depth of Cut Maximum (APMX) | 13 mm | Tool Type | High Performance |
| Overall Length (OAL) | 57 mm | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1969″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | EMD40 |
| Flute Helix Angle (FHA) | Multiple | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.5197
Package Width
0.5118
Package Height
0.5118
Package Weight
0.050715
