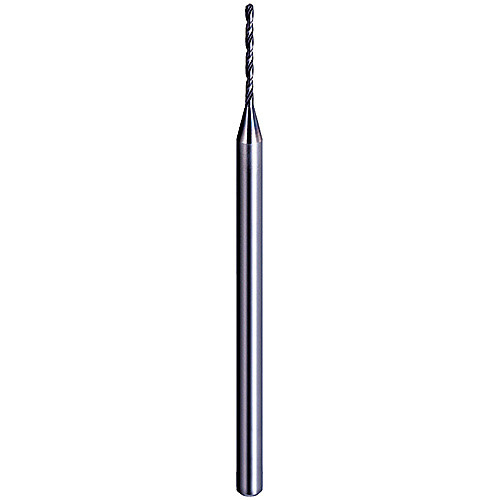

MWS0250XB VP15TF 2.5 mm Dia. × 3 mm Shank × 38.5 mm Flute Length × 74.5 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | 2.5 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.5 mm | Cutting Edge Material | Carbide |
| Length Group | 12xD | Grade | VP15TF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Series/List # | MWS |
| Head Length (LH) | 39.5 mm | Usable Length (LU) | 30.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 38.5 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 74.5 mm |
| Point Length (PL) | 0.5 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 74 mm | Feature | For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials. |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
