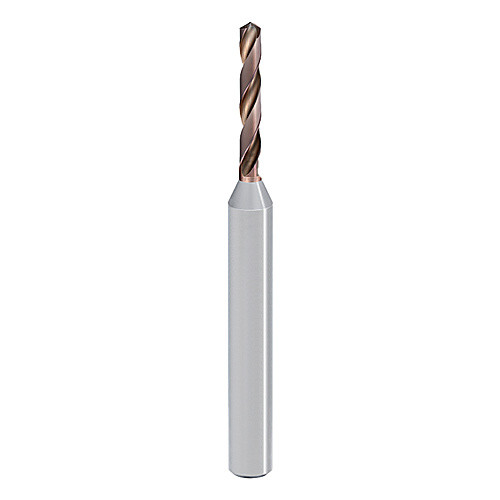

MVS0300X05S060 DP1020 3 mm Dia. × 6 mm Shank × 28.5 mm Flute Length × 81.5 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 3 mm Dia. × 6 mm Shank Dia. × 81.5 mm OAL × 28.5 mm LCF ; 140 Degrees ; 5xD ; Series MVS
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Grade | DP1020 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MVS |
| Head Length (LH) | 31.7 mm | Usable Length (LU) | 15.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 28.5 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 81.5 mm |
| Point Length (PL) | 0.5 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 81 mm | Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
