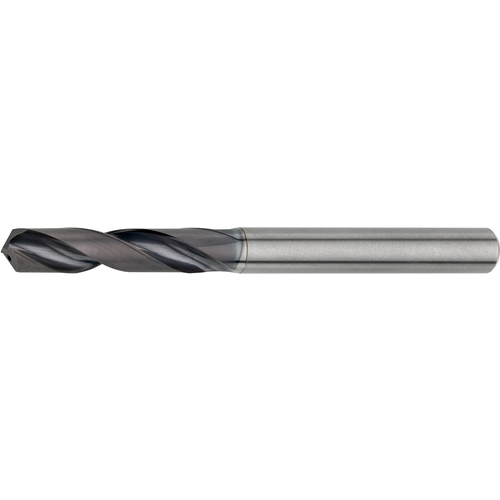

MWS0180X25DB VP15TF 1.8 mm Dia. × 3 mm Shank × 50.4 mm Flute Length × 94.4 mm OAL, 135°, 2 Flute, Coolant Thru, Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | 1.8 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.8 mm | Cutting Edge Material | Carbide |
| Length Group | 25xD | Grade | VP15TF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Series/List # | MWS |
| Head Length (LH) | 53.4 mm | Usable Length (LU) | 45.4 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 50.4 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 94.4 mm |
| Point Length (PL) | 0.4 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 94 mm | Feature | For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials. |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
