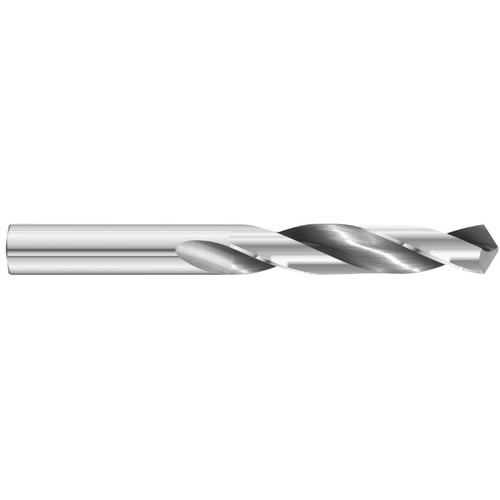

4.2 mm Dia. × 40.2 mm Shank × 41 mm Flute Length × 70 mm OAL, 7xD, 118°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | 4.2 mm | Shank Type | Round |
| Decimal Equivalent | 0.1654″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.2 mm | Cutting Edge Material | Carbide |
| Length Group | 7xD | Tool Type | Solid Carbide Drills |
| Coating | Uncoated | Point Shape | 4 Facet |
| Connection Diameter Machine Side (DCONMS) | 40.2 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Series/List # | 1510 |
| Point Angle (SIG) | 118 Degrees | Length Chip Flute (LCF) | 41 mm |
| Flute Helix Angle (FHA) | 25 Degrees | Overall Length (OAL) | 70 mm |
Product Features
| Remarks | |
Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.030
