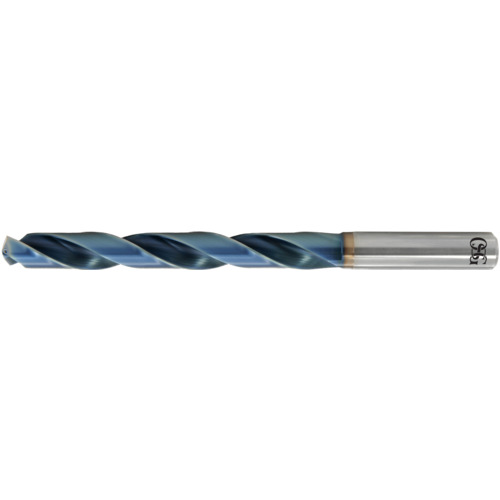

4.3 mm Dia. × 6 mm Shank × 45 mm Flute Length × 85 mm OAL, 8xD, TiAlN, 2xD Flute, Solid Carbide Drill
SC Drill; 4.3 mm Dia. × 6 mm Shank Dia. × 85 mm OAL × 45 mm LCF ; 140 Degrees ; 8xD ; EgiAs ; Series HP258
| Drill Bit Size / Cutting Diameter (DC) | 4.3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.3 mm | Tool Type | Solid Carbide Drills |
| Length Group | 8xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | HP258 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 45 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 45 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 85 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 45 mm | Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
3.45000
Package Width
.45000
Package Height
.40000
Package Weight
0.0500
