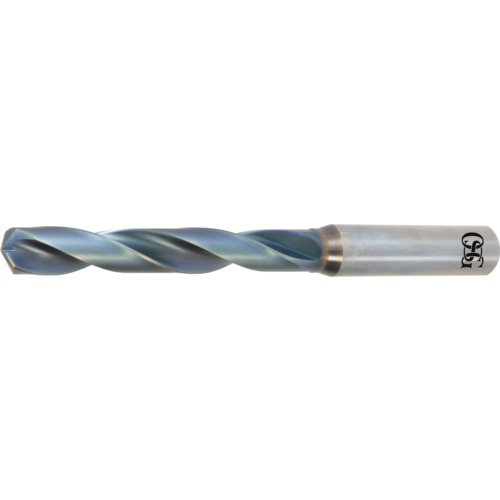

15/32 HY-PRO 5XD CARBIDE
SC Drill; 15/32″ Dia. × 8.1 mm Shank Dia. × 118 mm OAL × 71 mm LCF ; 140 Degrees ; Jobber ; Spiral Flute ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | 15/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/32″ | Tool Type | Jobber Drill |
| Decimal Equivalent | 0.4688″ | Flute Type | Spiral |
| Length Group | Jobber | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP245 |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 71 mm |
| Connection Diameter Machine Side (DCONMS) | 8.1 mm | Length Chip Flute (LCF) | 71 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 118 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 71 mm | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
4.70000
Package Width
.65000
Package Height
.60000
Package Weight
0.335
