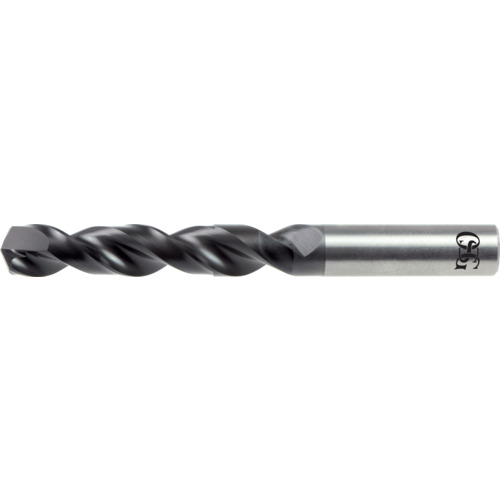

#30 Dia. × 1.8 mm Shank × 0.8″ Flute Length × 3″ OAL, Diamond, 2xD Flute, Solid Carbide Drill
SC Drill; #30 Dia. × 1.8 mm Shank Dia. × 3″ OAL × 0.8″ LCF ; 140 Degrees ; Jobber ; CVDDIA ; Series 7532
| Drill Bit Size / Cutting Diameter (DC) | #30 | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #30 | Tool Type | Jobber Drill |
| Length Group | Jobber | Measurement Type | Wire Gauge |
| Coating | CVDDIA | Series/List # | 7532 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 0.8″ |
| Connection Diameter Machine Side (DCONMS) | 1.8 mm | Length Chip Flute (LCF) | 0.8″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 0.8″ | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.10000
Package Width
.55000
Package Height
.45000
Package Weight
0.0250
