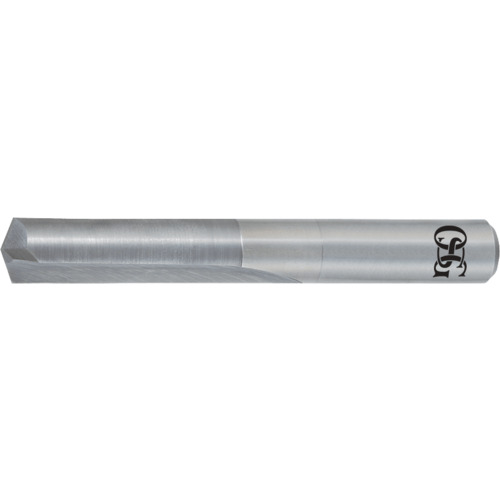

1/16″ Dia. × 1/16″ Shank × 5/8″ Flute Length × 1-5/8″ OAL, Bright, Solid Carbide Drill
SC Drill; 1/16″ Dia. × 1/16″ Shank Dia. × 1-5/8″ OAL × 5/8″ LCF ; 140 Degrees ; Jobber ; Straight Flute ; Uncoated ; Series 200
| Drill Bit Size / Cutting Diameter (DC) | 1/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/16″ | Tool Type | Jobber Drill |
| Decimal Equivalent | 0.0625″ | Flute Type | Straight |
| Length Group | Jobber | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | 200 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/16″ | Length Chip Flute (LCF) | 5/8″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 1-5/8″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
3.20000
Package Width
.45000
Package Height
.40000
Package Weight
0.005
