SCD 058-020-060 AP3 IC908
DIN 6537 solid carbide drills without coolant holes, drilling depth 3xD.

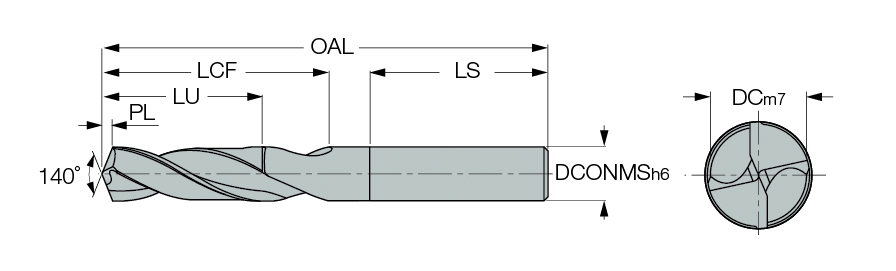

| Drill Bit Size / Cutting Diameter (DC) | 5.8 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.2283″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.8 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Series/List # | 2464 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 20 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 28 mm |
| Point Angle (SIG) | 118 Degrees | Overall Length (OAL) | 66 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 35 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | DIN 6537 solid carbide drills without coolant holes, drilling depth 3xD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.053
