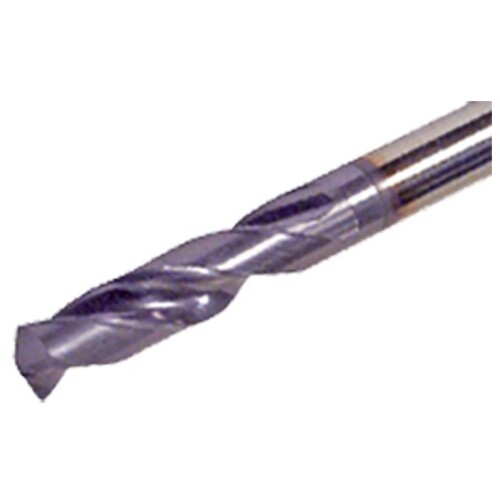

SCD 175-071-180 AG5 IC908
Solid Carbide Drill; 17.5 mm Dia. × 17.5 mm Shank Dia. × 143 mm OAL × 143 mm LCF ; 5xD ; 2 FL ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 17.5 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.689″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.5 mm | Grade | 5531031 |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Usable Length (LU) | 71 mm |
| Connection Diameter Machine Side (DCONMS) | 17.5 mm | Length Chip Flute (LCF) | 143 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 143 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill | Body Material | Carbide |
Product Features
| Family Description | Solid carbide drills without coolant holes. Drilling depth 5xD (DIN 6537). | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.8310
