SCDT 033-011-060-M4 IC908

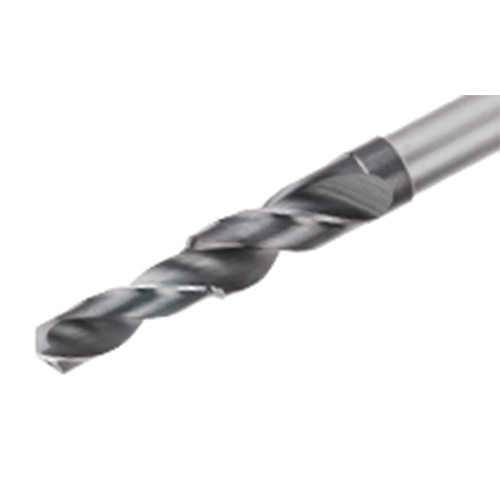

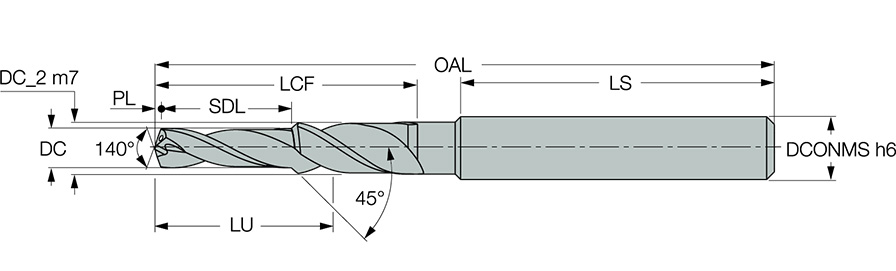

SC Drill; 3.3 mm Dia. × 6 mm Shank Dia. × 62 mm OAL × 24 mm LCF ; 140 Degrees ; 3xD ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 3.3 mm | Shape | Jobber Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1299″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.3 mm | Tool Type | solid carbide Drills |
| Length Group | 3xD | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Chamfering | Drilling | | Usable Length (LU) | 19 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 24 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 62 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.6 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 61.4 mm | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 36 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
Product Features
| Family Description | Pre-thread solid carbide drills with coolant holes | Country of Origin | Italy |
Shipping Info
Package Weight
0.044
