HB004215T7R00 IN2005

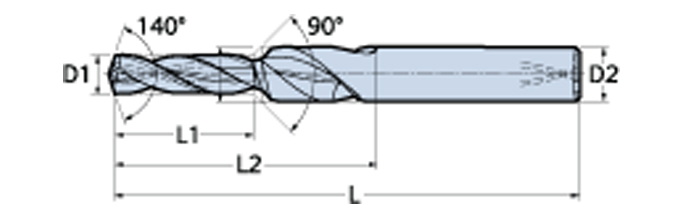

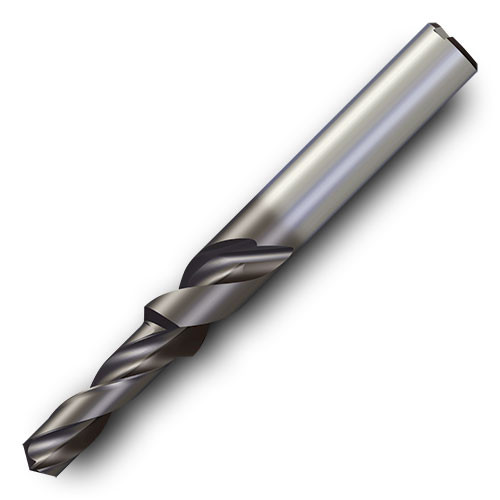

SC Drill; 0.169″ Dia. × 2.598″ OAL ; Jobber ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.169″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.169″ | Tool Type | Solid Carbide Drills |
| Length Group | Jobber | Grade | IN2005 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Chamfering | Drill Mill | Drilling | Slanted Shoulder & Chamfer | | Overall Length (OAL) | 2.598″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill | Body Material | Steel |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.047
