DR1210074U8R01 IN2005

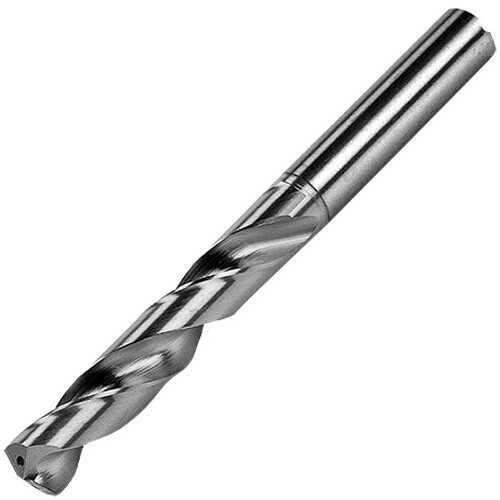

Solid Carbide Drill; 0.48 mm Dia. × 0.55 mm Shank Dia. × 5.4 mm OAL × 3.6 mm LCF ; 6xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 0.48 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0189″ | Tool Type | Taper Shank |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.48 mm | Grade | IN2005 |
| Length Group | 6xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Usable Length (LU) | 2.9 mm |
| Connection Diameter Machine Side (DCONMS) | 0.55 mm | Length Chip Flute (LCF) | 3.6 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 5.4 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | 3MT | Body Material | Carbide |
| Shape | Taper Shank |
Product Features
| Family Description | L:D Ratio - 5:1 Geometry: 140 deg. included pt. angle, 30 deg. axial rake angle | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.25
