DRXL0500060U1R01 IN2005

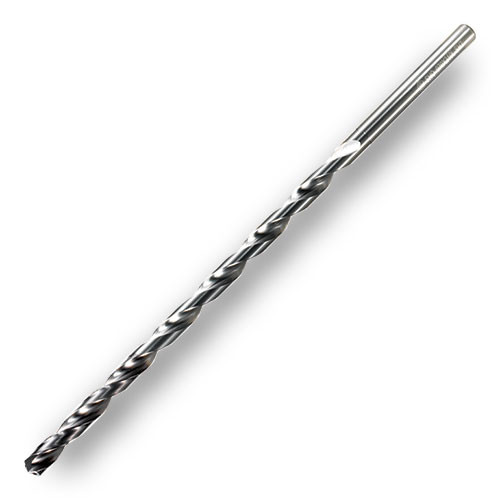

SC Drill; 0.197″ Dia. × 0.197″ Shank Dia. × 4.528″ OAL × 2.559″ LCF ; 140 Degrees ; 10 ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.197″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.197″ | Tool Type | Solid Carbide Drills |
| Length Group | 10× | Grade | IN2005 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drill Mill | Drilling | | Usable Length (LU) | 2.362″ |
| Connection Diameter Machine Side (DCONMS) | 0.197″ | Length Chip Flute (LCF) | 2.559″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 4.528″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.032″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shape | Taper Shank |
Product Features
| Family Description | 140° Included Point 30° Axial Rake | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.056
