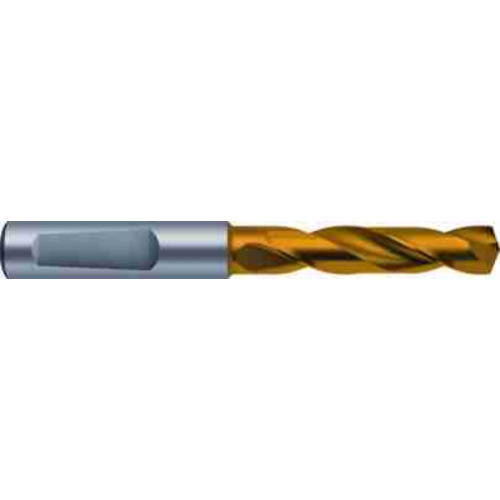

5.4 mm Dia. × 6 mm Shank × 28 mm Flute Length × 66 mm OAL, 40xD, 140°, TiN, 40xD Flute, Solid Carbide Drill
SC Drill; 5.4 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 40xD ; TiN ; Series 1184
Additional Tariff Surcharge of 6.6 %
| Drill Bit Size / Cutting Diameter (DC) | 5.4 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.2126″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.4 mm | Tool Type | Solid Carbide Drills |
| Length Group | 40xD | Measurement Type | Metric |
| Coating | TiN | Series/List # | 1184 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 28 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 66 mm |
Product Features
| Family Description | 9011840054000 5.4MM CBD HP 3XD | Country of Origin | Germany |
Shipping Info
Package Weight
.103
