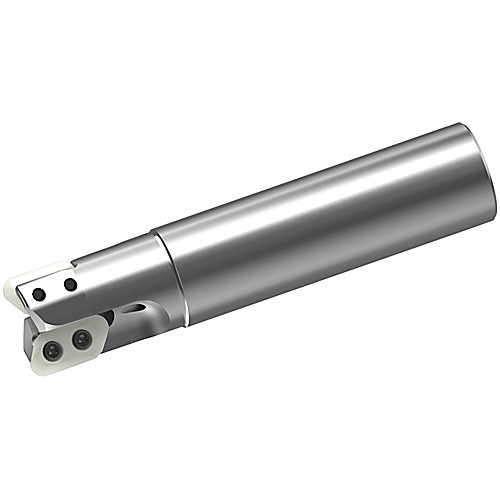

AXD7000UR202SA20SB INDEXABLE ENDMIL
Indexable End Mill; 1-1/4″ Dia. × 0.803″ LOC × 1-1/4″ Shank Dia. × 2″ LU ; 2 FL ; 90 Degrees ; Series AXD7000_INCH
| Cutting Diameter (DC/DCX) | 1-1/4″ | Usable Length (LU) | 2″ |
| Cutting Diameter (DC) | 1-1/4″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.803″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 18 Degrees | Series/List # | AXD7000_INCH |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Functional Length (LF) | 6″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.4000
