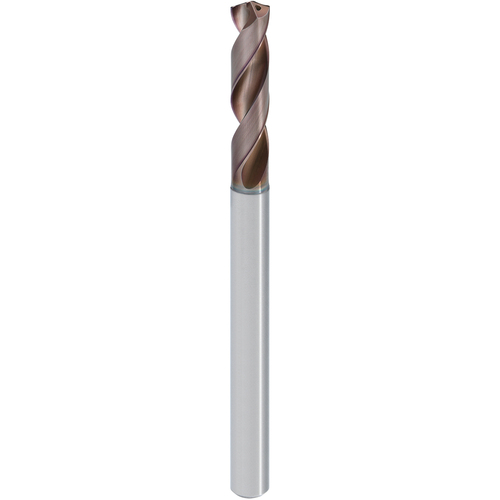

MVS0970X20S100 DP1020 9.7 mm Dia. × 10 mm Shank × 231.8 mm Flute Length × 289.8 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 9.7 mm Dia. × 10 mm Shank Dia. × 289.8 mm OAL × 231.8 mm LCF ; 140 Degrees ; 20xD ; Series MVS
| Drill Bit Size / Cutting Diameter (DC) | 9.7 mm | Flute Helix Angle (FHA) | 27 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.7 mm | Cutting Edge Material | Carbide |
| Length Group | 20xD | Grade | DP1020 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Series/List # | MVS |
| Head Length (LH) | 234.8 mm | Usable Length (LU) | 195.8 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 231.8 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 289.8 mm |
| Point Length (PL) | 1.8 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 288 mm | Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.2500
