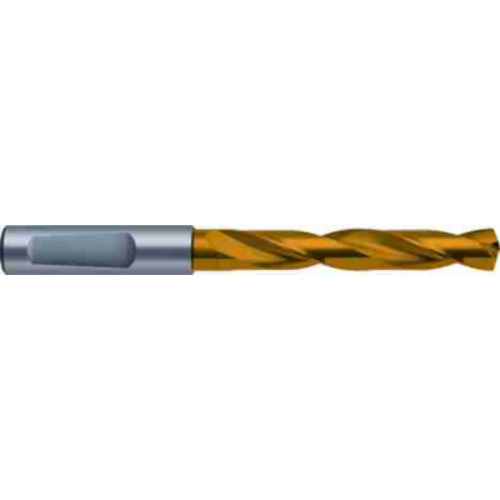

11.8 mm Dia. × 12 mm Shank × 71 mm Flute Length × 118 mm OAL, 5xD, 140°, TiN, 5xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 11.8 mm Dia. × 12 mm Shank Dia. × 118 mm OAL × 71 mm LCF ; 140 Degrees ; 5xD ; TiN ; Series 1183
Additional Tariff Surcharge of 6.6 %
| Drill Bit Size / Cutting Diameter (DC) | 11.8 mm | Shank Type | Round |
| Decimal Equivalent | 0.4646″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.8 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | TiN | Series/List # | 1183 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Chip Flute (LCF) | 71 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 118 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 5 |
Product Features
| Family Description | 9011830118000 11.8MM CBD HP 5XD | Country of Origin | Germany |
Shipping Info
Package Weight
.682
