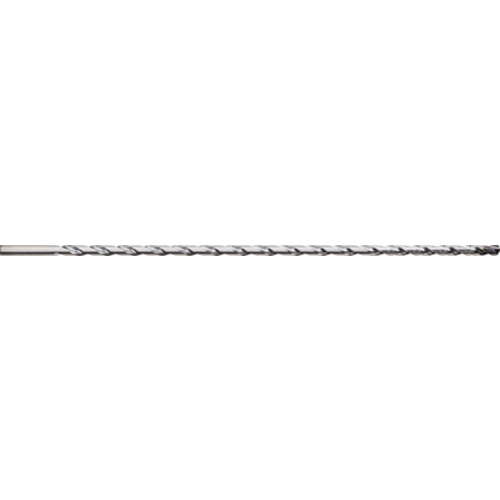

7 mm Dia. × 8 mm Shank × 302 mm Flute Length × 342 mm OAL, 40xD, 135°, TiAlN Tipped, 2 Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 7 mm Dia. × 8 mm Shank Dia. × 342 mm OAL × 302 mm LCF ; 135 Degrees ; 40xD ; TiAlN ; Series 6514
Additional Tariff Surcharge of 6.6 %
| Drill Bit Size / Cutting Diameter (DC) | 7 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2756″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7 mm | Measurement Type | Metric |
| Length Group | 40xD | Series/List # | 6514 |
| Coating | TiAlN | Length Chip Flute (LCF) | 302 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Overall Length (OAL) | 342 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | CW | Body Material | Carbide |
| Shape | Solid Carbide |
Product Features
| Family Description | 9065140070000 7MM CBD HP 40XD DRILL | Country of Origin | Germany |
Shipping Info
Package Length
14.50000
Package Width
.69700
Package Height
.69700
Package Weight
.334
