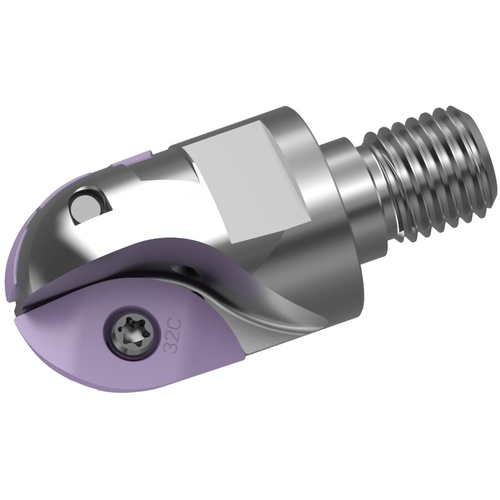

SRM2320AM16S45 INDEXABLE ENDMILL
Indexable End Mill; 32 mm Dia. × 28 mm LOC × 17 mm Shank Dia. × 68 mm OAL ; 2 FL ; Series SRM2
| Cutting Diameter (DC/DCX) | 32 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 32 mm | Body Diameter (BD) | 30 mm |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 28 mm | Series/List # | SRM2 |
| Overall Length (OAL) | 68 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 17 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Functional Length (LF) | 45 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.9999
