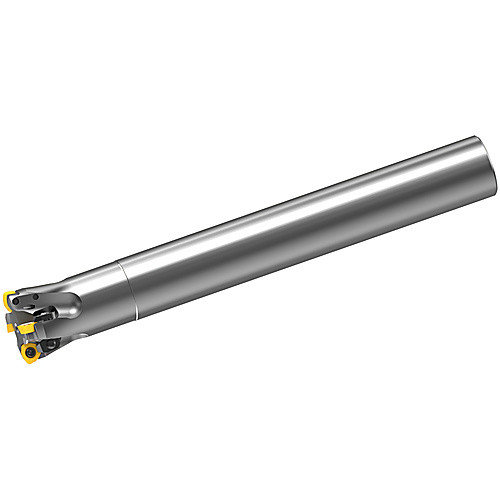

AJXU09R244SA20M INDEXABLE ENDMILL
Indexable End Mill; 1.114″ Dia. × 0.047″ LOC × 1-1/4″ Shank Dia. ; 4 FL ; Series AJX_INCH
| Cutting Diameter (DC/DCX) | 1.114″ | Functional Length (LF) | 10″ |
| Cutting Diameter (DC) | 1.114″ | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.047″ | Series/List # | AJX_INCH |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Head Length (LH) | 2-3/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.4
