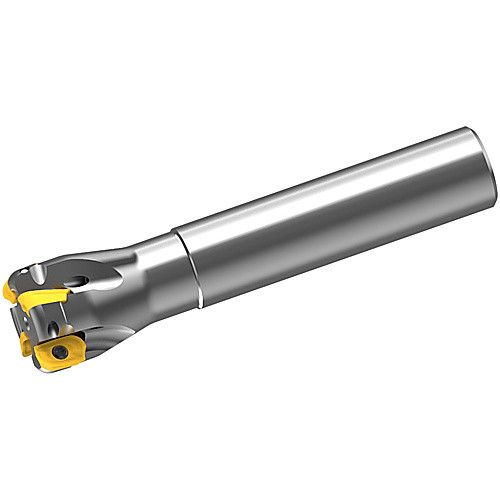

APX3000UR164SA12SB INDEXABLE ENDMIL
Indexable End Mill; 1″ Dia. × 0.394″ LOC × 3/4″ Shank Dia. ; 4 FL ; 90 Degrees ; Series APX3000_INCH
| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 4-3/8″ |
| Cutting Diameter (DC) | 1″ | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.394″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 4.5 Degrees | Series/List # | APX3000_INCH |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Head Length (LH) | 1.57″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.4000
