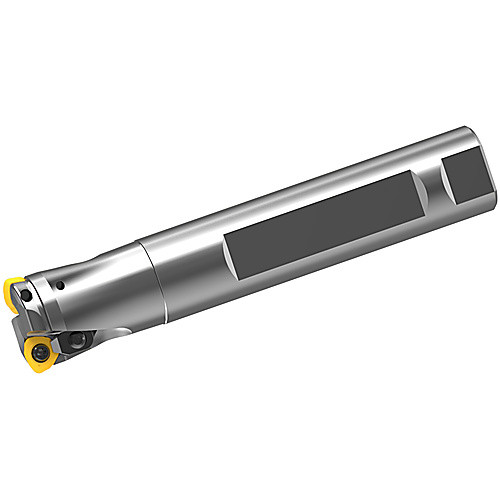

AJXU09R182FA16S INDEXABLE ENDMILL
Indexable End Mill; 0.728″ Dia. × 0.047″ LOC × 1″ Shank Dia. ; 2 FL ; Series AJX_INCH
| Cutting Diameter (DC/DCX) | 0.728″ | Functional Length (LF) | 5-5/8″ |
| Cutting Diameter (DC) | 0.728″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.047″ | Series/List # | AJX_INCH |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1-1/8″ |
| Head Length (LH) | 1-5/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.4000
