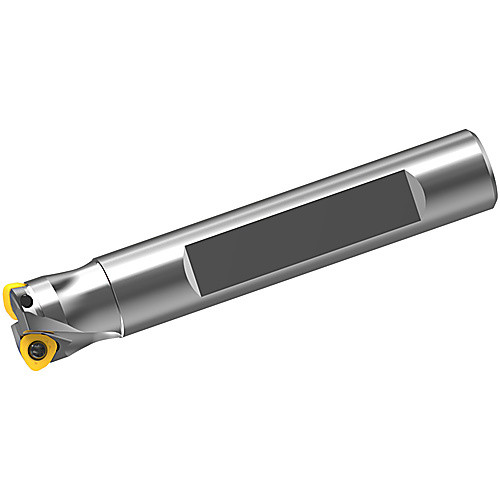

AJXU06R112FA10S INDEXABLE ENDMILL
Indexable End Mill; 0.409″ Dia. × 0.024″ LOC × 5/8″ Shank Dia. ; 2 FL ; Series AJX_INCH
| Cutting Diameter (DC/DCX) | 0.409″ | Functional Length (LF) | 3-3/4″ |
| Cutting Diameter (DC) | 0.409″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.024″ | Series/List # | AJX_INCH |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 0.688″ |
| Head Length (LH) | 3/4″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.4
