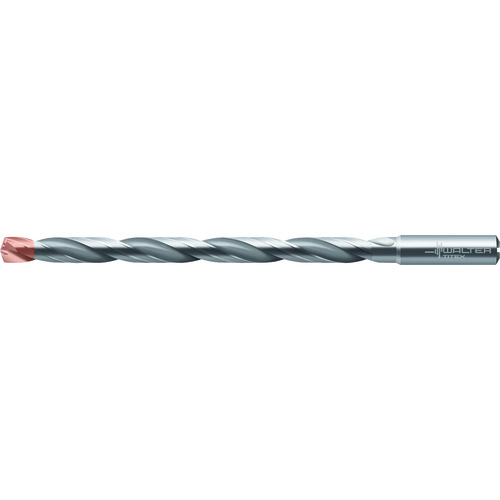

6.4 mm Dia. × 8 mm Shank × 110 mm Flute Length × 148 mm OAL, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill A6589DPP-6.4
A6589DPP-6.4
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 6.4 mm | Shank Standard | DIN 6535 HA |
| Decimal Equivalent | 0.252″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.4 mm | Cutting Edge Material | Carbide |
| Length Group | 15xD | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | A6589DPP |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 98 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 110 mm |
| Shank Type | Round | Overall Length (OAL) | 148 mm |
Product Features
| Family Description | A6589DPP-6.4 | Country of Origin | DE |
Shipping Info
Package Weight
0.9999
