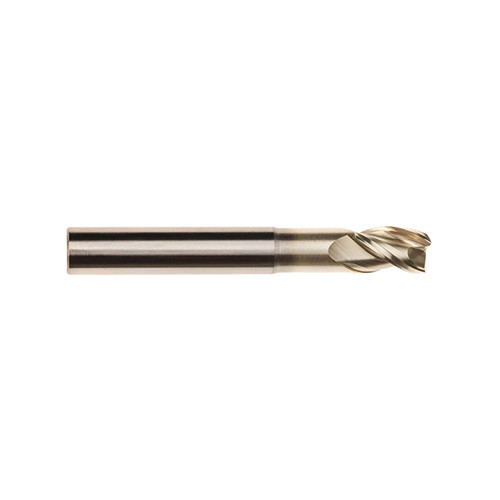

20 mm × 20 mm × 30 mm × 125 mm LBS=62 ZrN M223N 3F 3.0R SL Streaker Mill
BN End Mill; 0.787″ Dia. × 1.1811″ LOC × 0.787″ Shank Dia. × 4.921″ OAL ; 3 FL ; Carbide ; ZrN
| Cutting Diameter (DC) | 20 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Usable Length (LU) | 62 mm |
| Depth of Cut Maximum (APMX) | 30 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 125 mm | Grade | IM108 ZrN |
| Flute Count (NOF) | 3 | Tool Type | Single End |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
Product Features
| Remarks | •Designed for machining aluminum•ZrN coated for maximum tool life | Country of Origin | Usa |
Shipping Info
Package Weight
1.120
