FR0397029T7R01 IN2205

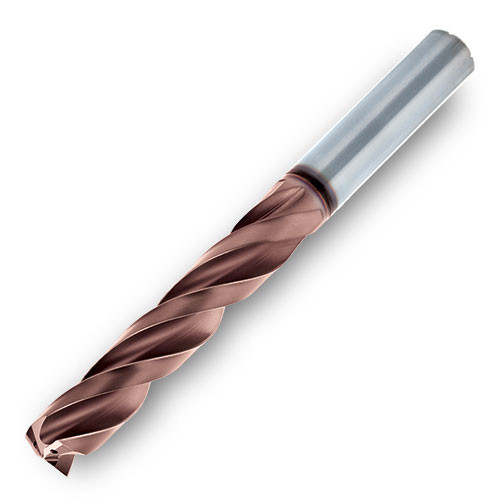

SC Drill; 0.156″ Dia. × 0.236″ Shank Dia. × 2.913″ OAL × 1.457″ LCF ; 140 Degrees ; 5D ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.156″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.156″ | Measurement Type | Inch |
| Length Group | 5D | Series/List # | 2464 |
| Application | | Drill Mill | Drilling | | Usable Length (LU) | 1.142″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Length Chip Flute (LCF) | 1.457″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 2.913″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.032″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shape | Jobber Drill |
Product Features
| Family Description | Self-Centering Point Internal Coolant | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.042
