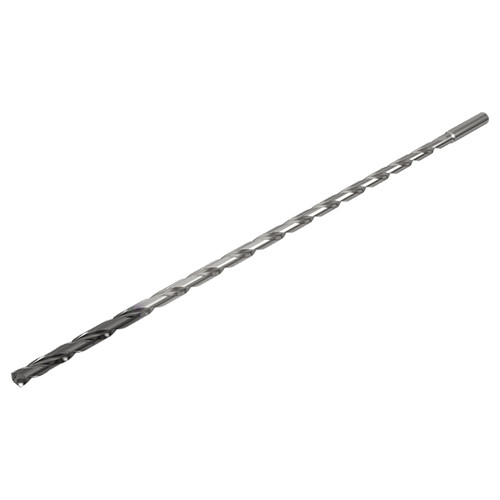

SCD0156-0331-0236SXC20 IC908

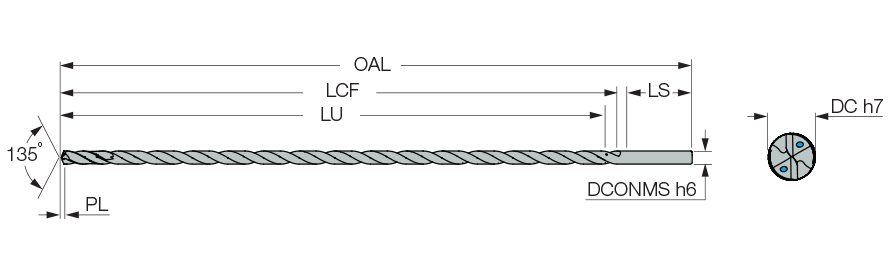

SC Drill; 0.156″ Dia. × 0.236″ Shank Dia. × 5.12″ OAL × 3.54″ LCF ; 135 Degrees ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.156″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.156″ | Tool Type | solid carbide Drills |
| Coating | TiAlN | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Series/List # | 2464 |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 3.3071″ |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 3.54″ |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 5.12″ |
| Point Length (PL) | 0.02578″ | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 1.417″ | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling depth 20xD. | Country of Origin | USA |
