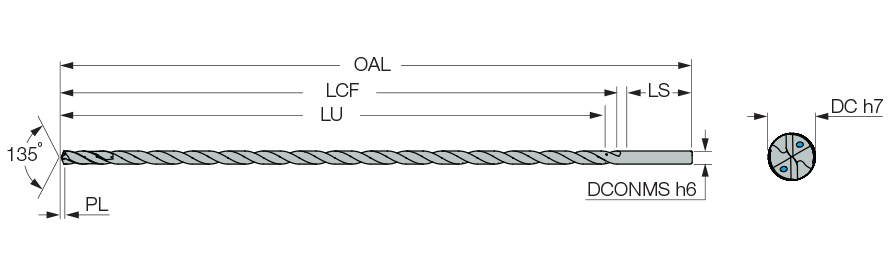

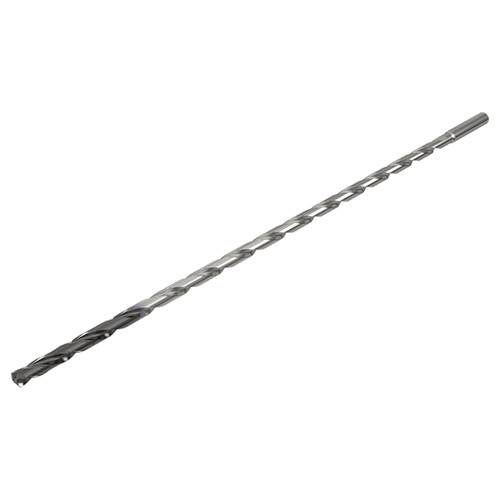

SCD0625-0988-0630SXC16 IC908
SC Drill; 5/8″ Dia. × 0.63″ Shank Dia. × 12.8″ OAL × 10.83″ LCF ; 135 Degrees ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ | Tool Type | solid carbide Drills |
| Decimal Equivalent | 0.625″ | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 9.8819″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Length Chip Flute (LCF) | 10.83″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 12.8″ |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.10312″ | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 1.89″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Shape | Jobber Drill |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling depth 16xD. | Country of Origin | USA |
