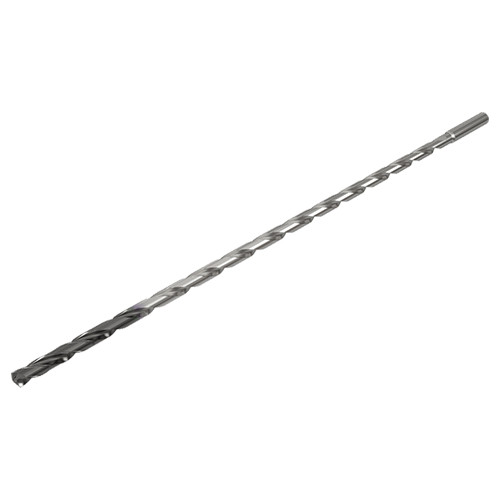

SCD0250-1307-0315SXC50 IC908

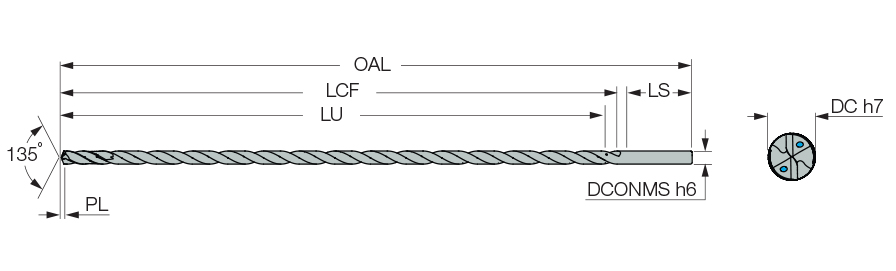

SC Drill; 1/4″ Dia. × 0.315″ Shank Dia. × 15.157″ OAL × 13.39″ LCF ; 135 Degrees ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Tool Type | solid carbide Drills |
| Decimal Equivalent | 0.25″ | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 13.071″ |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Length Chip Flute (LCF) | 13.39″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 15.157″ |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.041″ | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 1.575″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Shape | Jobber Drill |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling depth 50xD. | Country of Origin | USA |
