SCD 045-212-060 SXC40 IC908

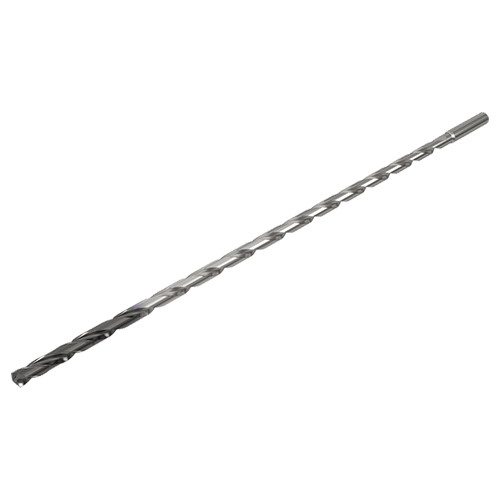

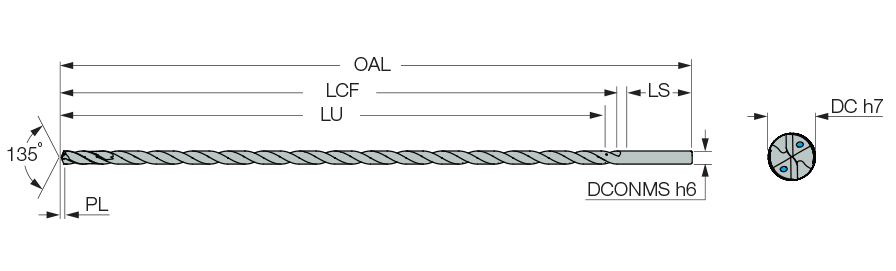

SC Drill; 4.5 mm Dia. × 6 mm Shank Dia. × 270 mm OAL × 220 mm LCF ; 135 Degrees ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1772″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 212 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 220 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 270 mm |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.743 mm | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 45 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Shape | Jobber Drill |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling depth 40xD. | Country of Origin | USA |
Shipping Info
Package Weight
0.187
