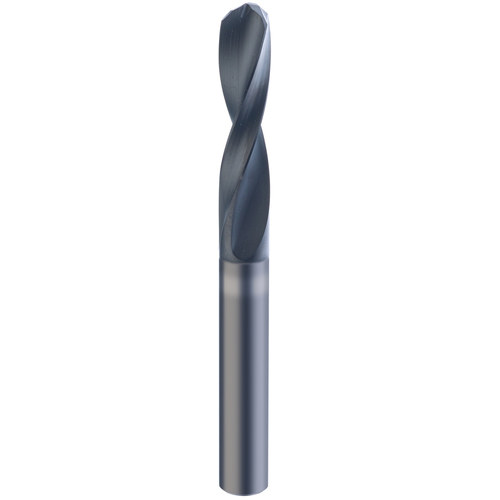

4.1 mm Dia. × 6 mm Shank × 24 mm Flute Length × 66 mm OAL, 3xD, 145°, TD, 2 Flute, External, Round Solid Carbide Drill
SC Drill; 4.1 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 24 mm LCF ; 145 Degrees ; 3xD ; Spiral Flute ; CVDDIA ; Series 120
| Drill Bit Size / Cutting Diameter (DC) | 4.1 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.1614″ | Length Below Shank | 36 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.1 mm | Flute Type | Spiral |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | CVDDIA | Series/List # | 120 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 24 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 24 mm |
| Point Angle (SIG) | 145 Degrees | Overall Length (OAL) | 66 mm |
| Flute Helix Angle (FHA) | 20 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.051
