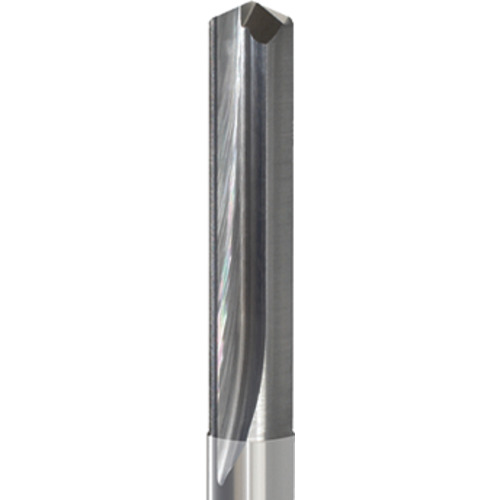

5/16 ST FL CARB DRILL
SC Drill; 5/16″ Dia. × 5/16″ Shank Dia. × 2-13/16″ OAL × 1-5/8″ LCF ; 140 Degrees ; Regular ; Uncoated ; Series 470
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.3125″ | Grade | C-2 Sub-Micron |
| Length Group | Regular | Point Shape | Notched Drill Point |
| Coating | Uncoated | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 470 |
| Application | Drilling | Length Chip Flute (LCF) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Overall Length (OAL) | 2-13/16″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 1-5/8″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
