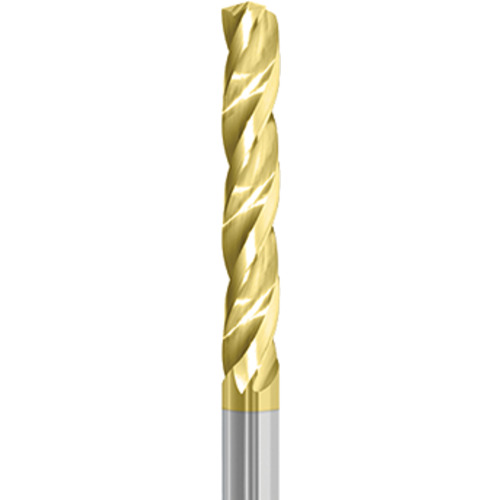

10.0mm CARB 3FL 150° PT DRILL TiN
SC Drill; 10 mm Dia. × 10 mm Shank Dia. × 114 mm OAL × 73 mm LCF ; 150 Degrees ; Regular ; TiN ; Series 453
| Drill Bit Size / Cutting Diameter (DC) | 10 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3937″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm | Grade | C-2 Sub-Micron |
| Length Group | Regular | Point Shape | Drill Point |
| Coating | TiN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | 453 |
| Application | Drilling | Length Chip Flute (LCF) | 73 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Overall Length (OAL) | 114 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 3 |
| Point Angle (SIG) | 150 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 73 mm | Single / Double End | Single End |
| Flute Helix Angle (FHA) | 28 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.28
