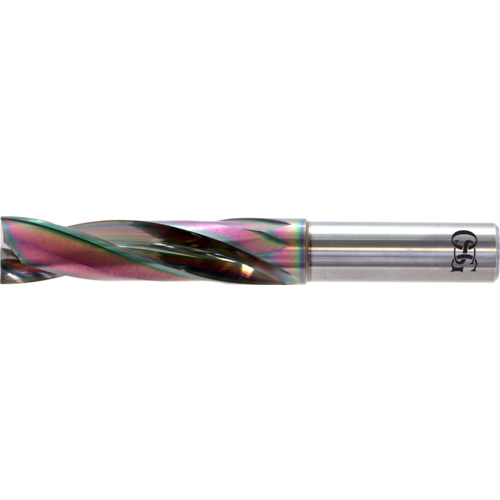

12.9 mm Dia. × 12 mm Shank × 56 mm Flute Length × 100 mm OAL, 2xD, EgiAs, 2 Flute, No, Solid Carbide Drill
SC Drill; 12.9 mm Dia. × 12 mm Shank Dia. × 100 mm OAL × 56 mm LCF ; 0 Degrees ; 2xD ; EgiAs ; Series 5700
| Drill Bit Size / Cutting Diameter (DC) | 12.9 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.9 mm | Tool Type | Stub Drill |
| Length Group | 2xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 5700 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 56 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Chip Flute (LCF) | 56 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 100 mm |
| Point Angle (SIG) | 0 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 56 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.490
