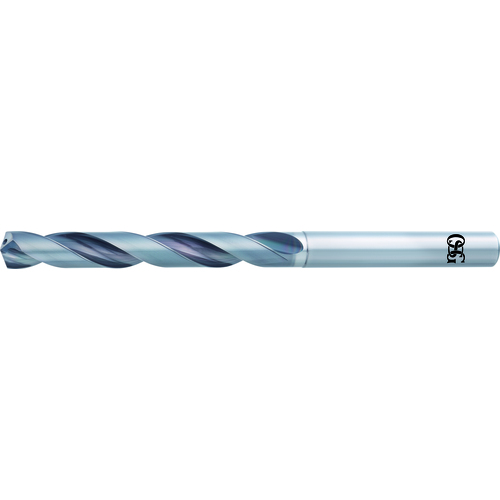

8.8 mm Dia. × 10 mm Shank × 71 mm Flute Length × 128 mm OAL, 5xD, WXL, 2 Flute, Coolant Thru, Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | 8.8 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.8 mm | Tool Type | Jobber Drill |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | WXL | Series/List # | 5210 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials | Hard Materials | Usable Length (LU) | 71 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 71 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 128 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 71 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.200
