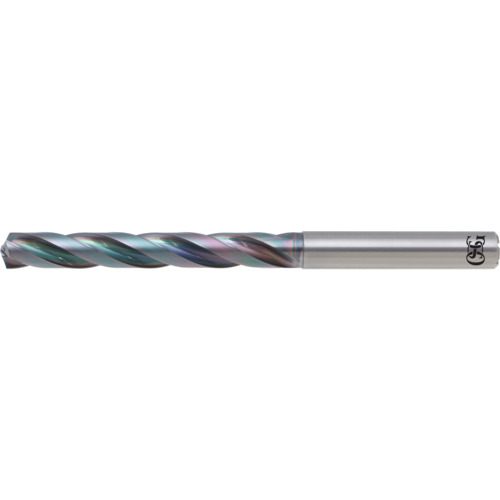

7.2 mm Dia. × 8 mm Shank × 58 mm Flute Length × 118 mm OAL, 5xD, EgiAs, 3 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 7.2 mm Dia. × 8 mm Shank Dia. × 118 mm OAL × 58 mm LCF ; 140 Degrees ; 5xD ; EgiAs ; Series 6610
| Drill Bit Size / Cutting Diameter (DC) | 7.2 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.2 mm | Tool Type | Jobber Drill |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6610 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 58 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 58 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 118 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 3 |
| Functional Length (LF) | 58 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.140
